The 4.5-inch (115mm) angle grinder is the daily driver of the metalworking industry. For industrial distributors and B2B procurement managers, the 4-1/2″ x 1/4″ x 7/8″ grinding disc is not just another product—it is the highest-volume consumable in your abrasive catalog.
Engineered specifically for continuous use on standard 115mm angle grinders, our T27 4.5-inch metal grinding wheel delivers aggressive material removal and exceptional thermal stability. By manufacturing these high-turnover discs with strict quality controls, we empower wholesalers to supply a reliable, fast-cutting tool that ensures high repurchase rates while maintaining robust profit margins in a highly competitive market.
Engineering the 4-1/2″ Disc for High-Volume Demands
A 4.5-inch grinding wheel operates at a demanding 13,300 RPM. At this speed, even minor manufacturing inconsistencies can lead to severe tool vibration, rapid abrasive glazing, and safety hazards. We manufacture this specific SKU to endure these rotational forces reliably:
- Strict Dynamic Balance: Unbalanced 115mm discs destroy angle grinder bearings and cause immediate operator hand-arm fatigue. We implement stringent dynamic balance testing across every batch. Our wheels spin true, ensuring maximum power transfer from the grinder directly to the metal surface.
- Optimized Resin-to-Grain Ratio: Through precise temperature control in our curing kilns, we lock the aluminum oxide grains within the phenolic resin bond. This ensures the abrasive fractures and self-sharpens at the exact right pressure, preventing the disc from glazing over when operators tackle thick carbon steel welds.

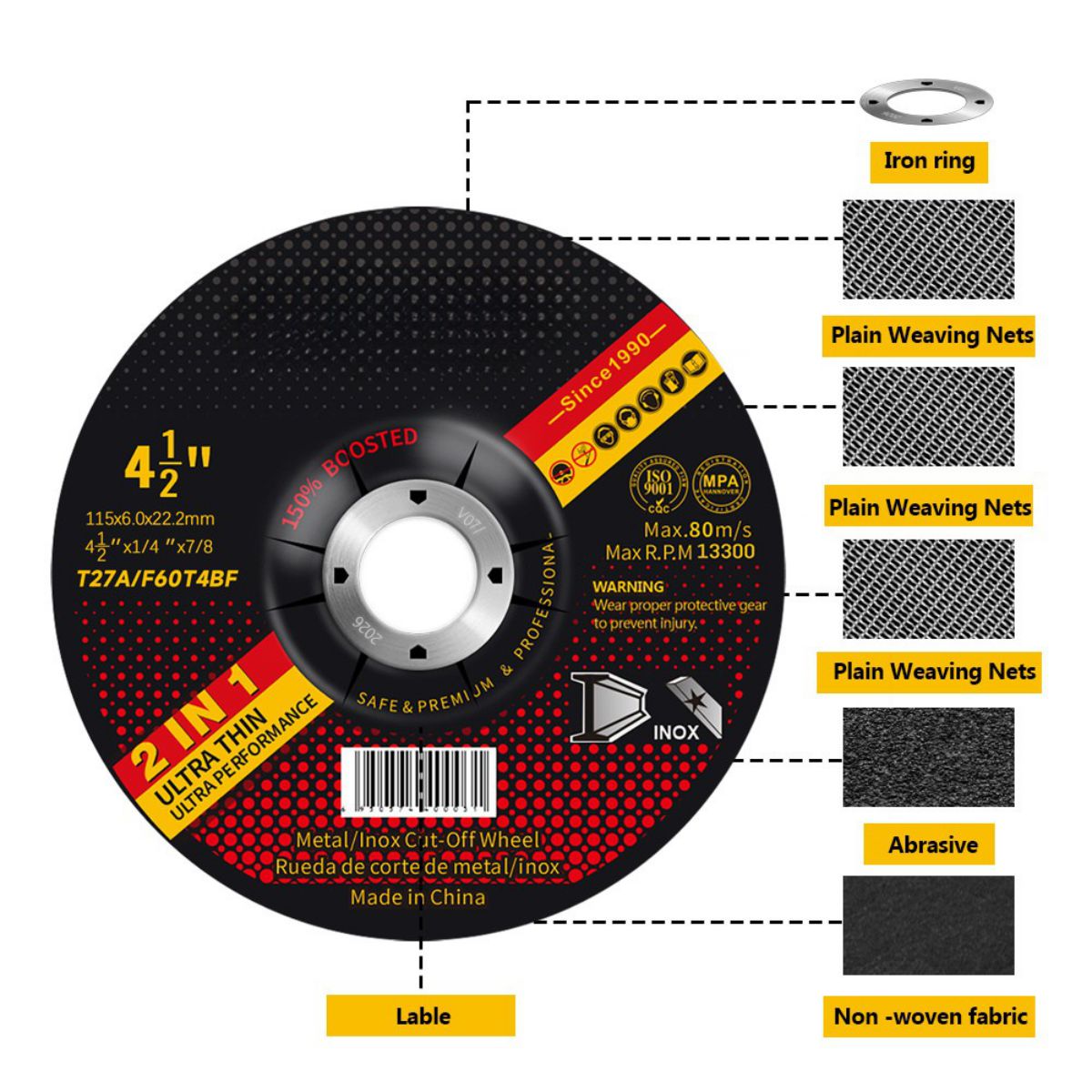

- Reinforced Safety Core: Built to withstand heavy lateral pressure during aggressive edge beveling, the fiberglass matrix prevents catastrophic wheel failure, meeting the rigorous safety demands of heavy fabrication shops.
Industrial Applications for Your End-Users
Position this 115×6.0x22.2mm grinding disc for clients in structural steel fabrication, automotive repair, and shipbuilding. It is the optimal B2B B2B solution for:
- Quickly knocking down heavy weld seams and spatter.
- Beveling pipe and plate edges prior to welding.
- Grinding off deep rust, mill scale, and industrial coatings without rapidly degrading the wheel diameter.

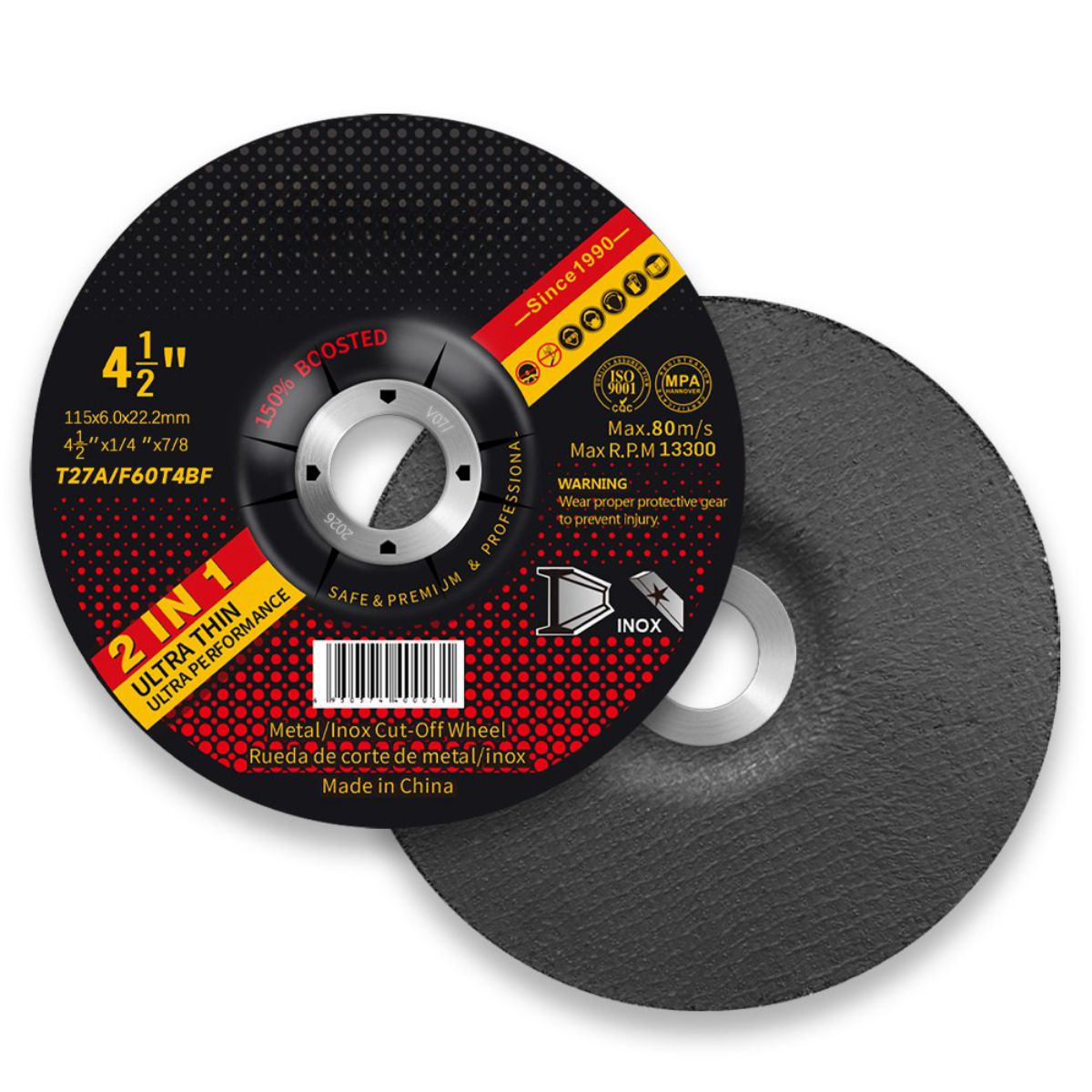

Technical Specifications
| Parameter Type | Metric Unit | Imperial Unit |
|---|---|---|
| Outer Diameter | 115mm | 4.5 inches |
| Thickness | 6.0mm | 1/4 inch |
| Aperture | 22.2mm | 7/8 inches |
| Maximum Speed | 13,300 RPM | 80m/s Speed Level |
Global OEM & Bulk Distribution Solutions
We understand that bulk B2B procurement requires more than just a good product; it requires reliable supply chain execution.
- Dual Standard Compliance: Our 4.5-inch discs are manufactured to meet both European EN 12413 and North American ANSI B7.1 standards, allowing you to confidently distribute across diverse global markets.
- Custom OEM Branding: We provide full private label manufacturing. Your brand’s logo, specific color codes, and mandatory safety pictograms are printed with absolute clarity on the center label, maintaining the professional aesthetic your clients expect.
- Logistics-Optimized Packaging: Designed for wholesale B2B B2B operations, our packaging maximizes pallet density for sea freight. We offer moisture-resistant inner boxes and heavy-duty corrugated export cartons to ensure every shipment arrives at your warehouse in factory condition.
Reach out to our export sales team to request B2B pricing tiers, OEM customization details, and physical samples of our 4.5-inch grinding discs for your quality control evaluation.
Frequently Asked Questions for Wholesale & Procurement
Yes, mechanically it is safe, provided the 5-inch grinder shares the exact same 22.2mm (7/8″) arbor spindle. Because a standard 5-inch angle grinder typically operates at a lower speed (around 12,200 RPM) than the 13,300 RPM maximum safety limit of a 4.5-inch disc, there is no risk of over-speeding the wheel. However, as a B2B distributor, you should advise end-users that using a smaller disc on a larger tool guard reduces the effective reach of the abrasive, which may slightly decrease grinding efficiency on flat surfaces.
Our standard wholesale 115×6.0x22.2mm Type 27 discs are manufactured with a flat 22.2mm (7/8-inch) metal-reinforced center hole. They are designed to be secured using the standard backing flange and lock nut provided with the angle grinder. We do not pre-install a disposable zinc 5/8″-11 threaded hub on this baseline B2B model, as keeping it hubless drastically reduces your unit cost and maximizes shipping density. (Note: Threaded hubs are available upon request for specific OEM orders).
Abrasive safety ratings are governed by peripheral speed, specifically 80 meters per second (m/s) for standard metal fabrication. Because a 4.5-inch (115mm) disc has a smaller circumference than a 5-inch or 7-inch wheel, it must rotate faster to achieve that optimal 80 m/s cutting velocity. It is critical for distributors to ensure buyers never mount these 13,300 RPM discs on high-speed pneumatic die grinders that can exceed 15,000+ RPM.
We strongly advise against it, and distributors should actively educate their clients to prevent returns. While the abrasive grain is indeed aluminum oxide, these standard metal/steel grinding discs are bonded specifically for ferrous metals (carbon steel, iron). Using them on soft, non-ferrous aluminum will cause “loading” or “glazing”—the aluminum melts and clogs the pores of the wheel, rendering it dangerously smooth and prone to overheating. For aluminum fabrication, we manufacture a dedicated line of wheels with specific lubricants to prevent clogging.
To optimize international sea freight and protect against warehouse humidity, our 4.5-inch grinding wheels are tightly shrink-wrapped in stacks of 25 pieces. These stacks are packed into branded, moisture-resistant inner boxes, which are then loaded into heavy-duty corrugated export cartons (typically 200 pieces per carton, optimizing the standard weight limit for manual handling). This specific configuration ensures zero damage during transit and allows distributors to easily break down cartons for smaller retail sales.
