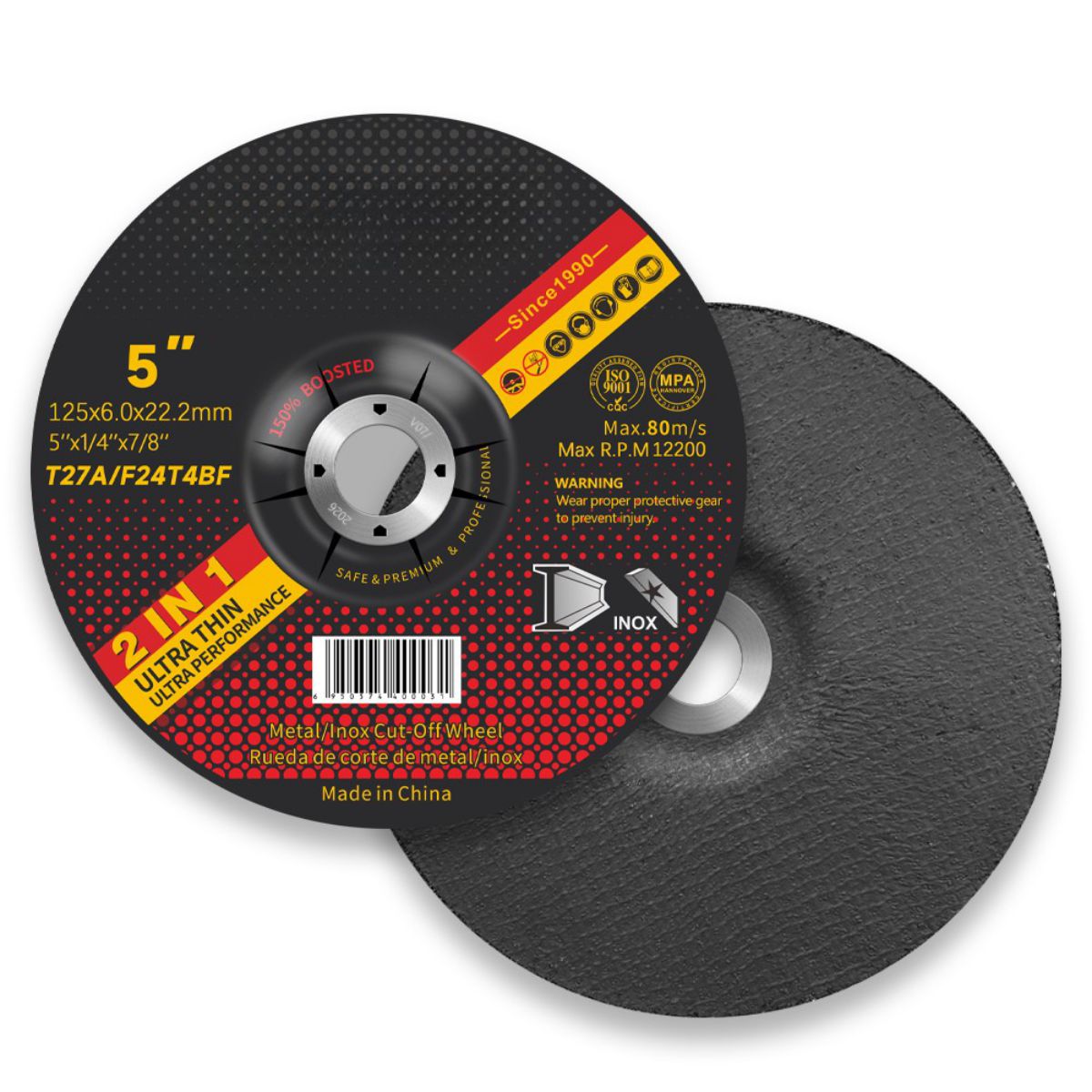

For abrasive distributors and industrial procurement managers, securing a reliable, high-turnover consumable is critical for maintaining healthy margins and customer retention. Our T27 5-inch single net grinding wheel is specifically positioned as the volume-driven, general-purpose solution within your abrasive portfolio.
Designed for standard duty metal fabrication, this 125mm single net grinding disc delivers a balanced abrasive performance for light-to-medium weld seam blending and surface preparation. By utilizing a single layer of high-tensile fiberglass reinforcement, we optimize the manufacturing cost structure without compromising the fundamental safety requirements of an 80 m/s rotating tool, allowing our B2B partners to capture market share with highly competitive wholesale pricing.
Specifications for Procurement
| Specification | Technical Parameter |
| Dimensions | 125 x 6.0 x 22.2 mm (5″ x 1/4″ x 7/8″) |
| Wheel Profile | Type 27 (Depressed Center) |

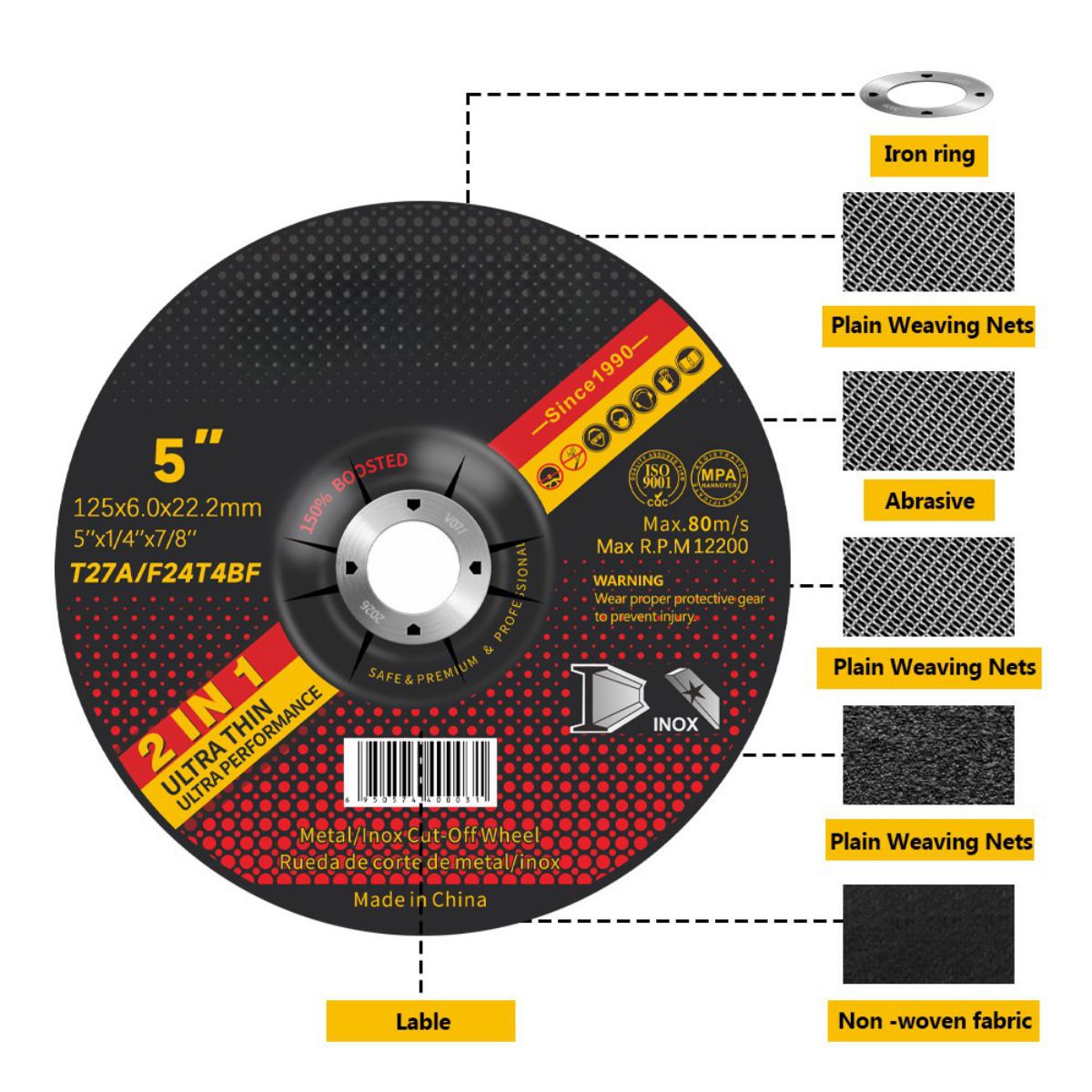

| Structural Reinforcement | Single Fiberglass Net |
| Abrasive Formulation | General Purpose Aluminum Oxide |
| Bonding System | Phenolic Resin Bonded (BF) |
| Max Operating Speed | 80 m/s |
| Max RPM | 12,200 RPM |
| Application Focus | Carbon Steel, Structural Steel, General Metal Alloys |
Strategic Market Positioning: Single Net vs. Double Net
To optimize your B2B inventory strategy, it is important to clearly segment your product offerings for different end-user demands:
- The Single Net Advantage (This Product): Position this 125×6.0x22.2mm grinding wheel for clients focused on general fabrication, automotive body shops, and everyday surface smoothing. The single net structure provides a slightly more flexible feel during contour grinding, reducing operator fatigue for tasks that do not demand aggressive downward pressure. It is your margin-builder for price-sensitive industrial markets.
- When to Recommend Double Net: For heavy industrial clients dealing with thick plasma-cut slag, heavy stock removal, or aggressive edge dressing, direct them to our double net series, which is built to withstand significantly higher lateral forces.
Factory-Level Quality Control & Batch Consistency
Your brand reputation depends on the stability of the abrasive tools you distribute. We do not just assemble products; we manufacture them from the ground up with strict industrial oversight.
Safety Compliance: Every production run is subject to rigorous dynamic balance and destructive testing to ensure strict compliance with EN 12413 safety standards for angle grinder discs for steel.
Automated Precision: Our production lines utilize automated pressing equipment to ensure every T27 5 inch grinding wheel maintains uniform density and exact dimensional tolerances. The 22.2mm bore is consistently precise, eliminating the vibration issues common in lower-tier imported discs.
Controlled Curing Process: The resin bonding agents are cured in advanced, temperature-controlled tunnel kilns. This specific thermal management guarantees the abrasive grains shed at a predictable rate, providing end-users with a consistent cut-to-wear ratio across every batch.
OEM / ODM Capabilities for Global Brands
We structure our B2B manufacturing services to seamlessly integrate into your supply chain.
- Private Labeling: Fully customized center labels strictly adhering to your brand guidelines and regional regulatory marking requirements. We ensure all original text, logos, and industrial specifications are printed with absolute clarity and precision.
- Custom Formulations: If your market requires specific cutting behaviors, our engineering team can adjust the abrasive-to-resin ratio to dial in the exact performance metrics your customers demand.
- Wholesale Logistics: We provide robust B2B packaging solutions, including moisture-proof shrink wrapping, branded inner boxes, and heavy-duty export cartons optimized for maximum pallet density and safe sea freight transit.
Contact our export sales team today to request a technical data sheet, discuss MOQ requirements, or arrange sample testing for your next procurement cycle.
Frequently Asked Questions for Wholesale & Procurement
Single net wheels, like this 5-inch model, are manufactured with one layer of high-tensile fiberglass mesh. They offer a slightly more forgiving, “softer” grind, making them highly efficient for light-to-medium surface preparation, contouring, and reducing operator hand-arm vibration. Double net wheels incorporate two or more layers of mesh, providing maximum rigid structural integrity for heavy stock removal, extreme downward pressure, and aggressive edge dressing without lateral deflection.
A 6.0mm (1/4″) profile is the industrial standard for depressed center grinding wheels (Type 27) because it provides the necessary mass, durability, and abrasive volume for flattening heavy weld seams and general fabrication. Thinner 1/8″ wheels (often referred to as pipeliner discs) are excellent for narrow groove grinding or root pass cleaning, but they wear out rapidly and risk lateral breakage if used for wide, flat surface grinding.
It depends entirely on the stage of the fabrication process. Solid resin grinding wheels (like this T27 disc) are built for rapid, aggressive material removal—perfect for knocking down heavy carbon steel welds, spatter, and mill scale. Flap discs are finishing tools; while they provide a smoother, gouge-free finish, they will shred rapidly and spike your client’s consumable costs if used on sharp, heavy slag. The industry best practice is to use the hard wheel for the heavy lifting, followed by the flap disc for the final polish.
Yes. Because they utilize phenolic resin binders, grinding wheels naturally degrade over time, especially when exposed to high humidity and severe temperature fluctuations. The industry standard shelf life is typically 3 years from the date of manufacture. As a responsible B2B manufacturer, we stamp the expiration date (V-date) on the metal ring of every disc. Distributors must implement strict First-In-First-Out (FIFO) stock rotation and store the pallets in a dry, climate-controlled warehouse to prevent moisture absorption.
Abrasive safety is a massive liability for distributors, which is why compliance is non-negotiable. For every wholesale batch, we provide full transparency. We strictly adhere to EN 12413 manufacturing tolerances and testing protocols. For OEM orders, we ensure your custom center labels accurately display all legally required data, including the maximum operating speed (80 m/s), strict RPM limits (12,200 RPM for 5-inch wheels), the correct V-date, and all mandatory safety pictograms. Batch-specific dynamic balance test reports are available upon request before sea freight dispatch.
